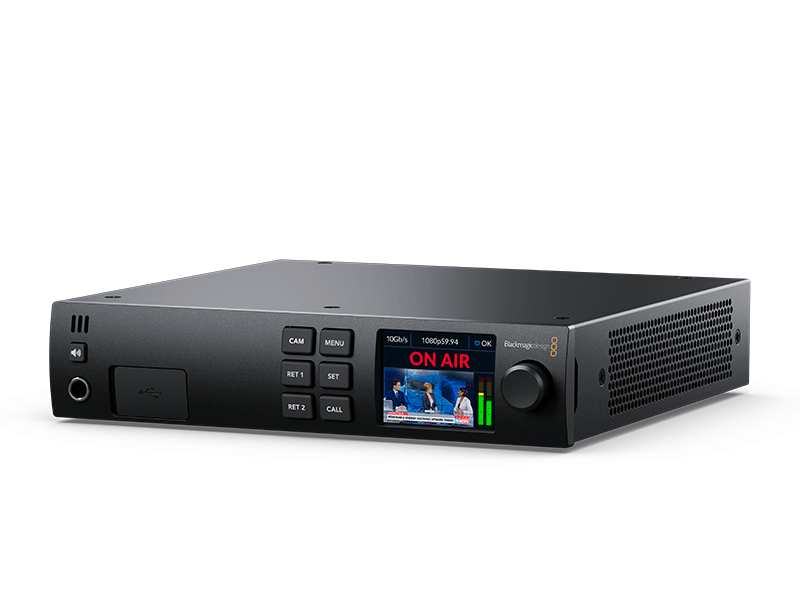

Blackmagic Studio Converter

SDI Video Inputs

2

SDI Video Outputs

2

SDI Monitor Outputs

1

SDI Rates

1.5G, 3G, 6G, 12G.

Built in Speaker

Mono

Analog Audio Inputs

2  channel analog Program audio in supported via 9‑pin  connector.

Analog Audio Outputs

1 x 6.35  mm headphone  jack.

SDI Audio Input

Return 1 with 2 channels of Program audio embedded  in 1.5G/3G/6G/12G-SDI.

4  talkback channels  on 13, 14, 15  and  16.

Return 2 with 2 channels of audio embedded in 1.5G/3G/6G/12G-SDI.

SDI Audio Output

2 channels of Program audio embedded  in 1.5G/3G/6G/12G-SDI.

4  talkback channels  on 13, 14, 15  and  16.

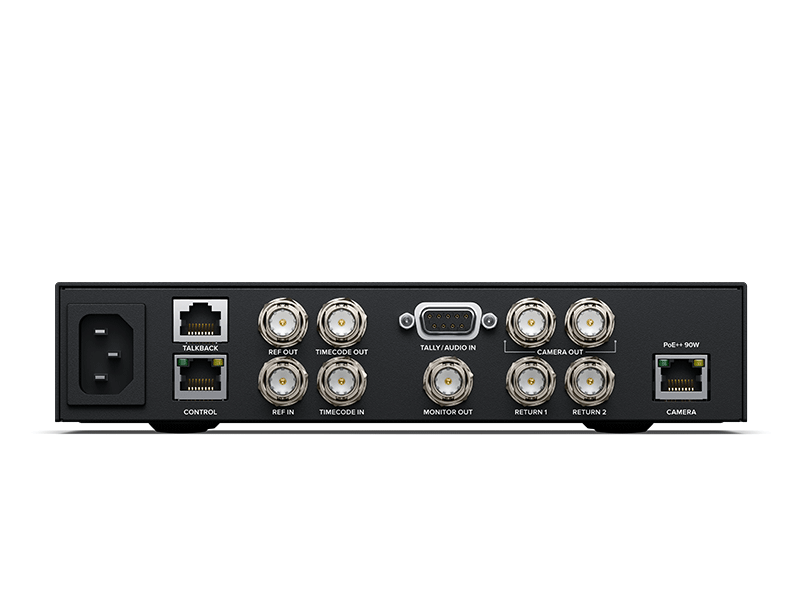

Timecode Connections

1 x BNC  In, 1 x BNC  Out.

Reference Connections

1 x BNC  In, 1 x BNC  Out.

Tri-Sync or Black  Burst.

Talkback Audio

SDI channels 13 and 14 for Engineering talkback.

SDI channels 15 and 16 for Production talkback.

RJ-45 Talkback connector for analog external talkback systems.

Screen

2.2 inch LCD

Ethernet

1 x 10Gb/s PoE RJ‑45 Camera connector for SMPTE Fibre  style workflow over Cat  6A network  cable.

1 x 1Gb/s for external control and software  updates.

Computer Interface

1 x USB-C.

HD Video Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97,
1080p30, 1080p50, 1080p59.94, 1080p60,
1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97,
2160p30, 2160p50, 2160p59.94, 2160p60

SDI Compliance

SMPTE  292M, SMPTE  372M, SMPTE  424M, SMPTE  425M level  A and  B, SMPTE  2081‑1, SMPTE  2081‑10, SMPTE  2082‑1 and  SMPTE  2082‑10.

Audio Sampling

Television standard sample rate of 48kHz and 24‑bit.

Video Sampling

4:2:2

Color Precision

10-bit

Color Space

REC 709, REC 2020.

Multiple Rate Support

SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI.

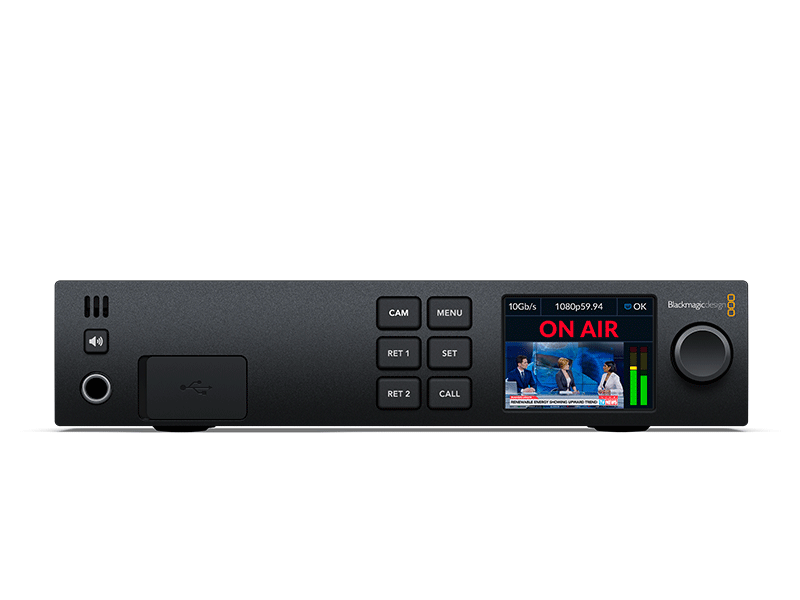

Built in Control Panel

7 buttons with spin knob control and 2.2 inch color display for device control and menu settings.

External Control

RJ-45 1Gb/s Ethernet.

Software Included

Camera Utility for firmware update.

Windows 10,  64-bit.

Power Supply

100 - 240V AC input.

Power Supply

1 x Internal 100 - 240V AC 50/60Hz.

Power Usage

40 W max plus camera power usage.

Blackmagic Universal Rack Shelf

Blackmagic Studio Camera 4K  Pro

Operating Temperature

0° to 45° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

Blackmagic Studio Converter

1 Year Limited Manufacturer's Warranty.
